BTA 10

Wirelessly stream audio to any entertainment system.

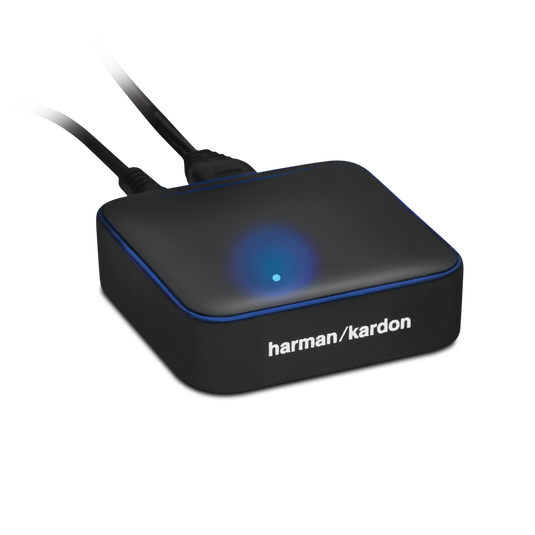

Wirelessly stream audio to any entertainment system.<CRLF>Sometimes you want your favorite music to fill the room, not just your headphones. And if your home entertainment system already has Bluetooth® capability, you can wirelessly stream audio from a portable device &amp;#40;for instance, your smartphone or tablet&amp;#41;. But what if your system isn’t equipped with Bluetooth technology? Not a problem. The Harman Kardon® BTA 10 external Bluetooth adapter connects directly to your entertainment system and enables you to stream audio wirelessly into the system from any Bluetooth-equipped portable device.<CRLF>The BTA 10’s HARMAN TrueStream™ technology means that its wireless audio connection to your entertainment system will be the highest quality possible – no matter what source device is supplying the audio. For your convenience, the BTA 10 has an LED indicator light that blinks as it searches for your Bluetooth-equipped device and stays steadily lit when it’s paired up successfully. The BTA 10 even comes with cables so that you can hook it up to your entertainment system. From home systems to portable speakers to speaker docks, the BTA 10 Bluetooth adapter adds wireless streaming capability to any audio system with a stereo 3.5mm aux input or stereo RCA inputs.

General Specifications

Power consumption

5V/0.4A

Audio output level

1V RMS

Audio output S/N

85dB

Number of devices in pairing memory

8

Nominal reception distance

33' (10m)

Audio Specifications

Number of devices in pairing memory

8

Audio output S/N:

85dB

Audio output level:

1V RMS

Power consumption:

5V/0.4A

Bluetooth profile:

Bluetooth 2.1+ EDR with A2DP

Audio output frequency response:

3dB @ 20Hz – 20kHz

Nominal reception distance

33' (10m)

Dimensions

Height (mm)

50

Width (mm)

50

Weight (g)

35

Weight (lb)

0.07 lb without cable, power adapter, plugs

Depth (mm)

16

Width (in)

2

Height (in)

2

Depth (in)

5/8

1 BTA 10 Bluetooth adapter

1 39" (1m) stereo 1/8" (3.5mm) to stereo dual RCA audio cable

1 39" (1m) stereo 1/8" (3.5mm) to stereo 1/8" (3.5mm) audio cable

1 power supply

1 warranty card

Quick-setup guide
